MV522 Series MV-08 Mechanical Valves

产品参数

5 Port 2 Way Airtac replacement Mechanical Pneumatic Valve MV-09 MV-08 MV-10 MV-10A

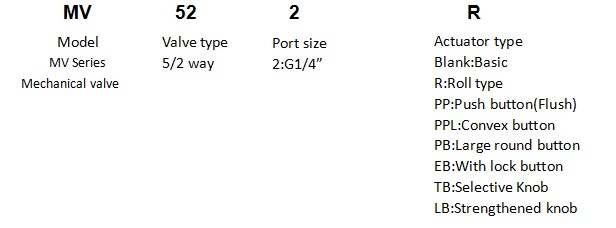

Order code

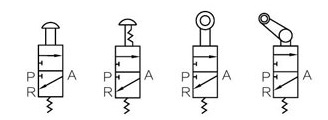

Symbol

Technical parameter

Item No.	MV522	MV522R (MV-09)	MV522PP	MV522PPL	MV522PB (MV-10A)	MV522EB (MV-10)	MV522TB (MV-08)	MV522LB
Fluid	Air
Operating press range	0-0.8 Mpa
Ambient and fluid temperature	-5 to 60℃
Port size	1/4”
Operation type	Direct acting
Lubrication	Not required

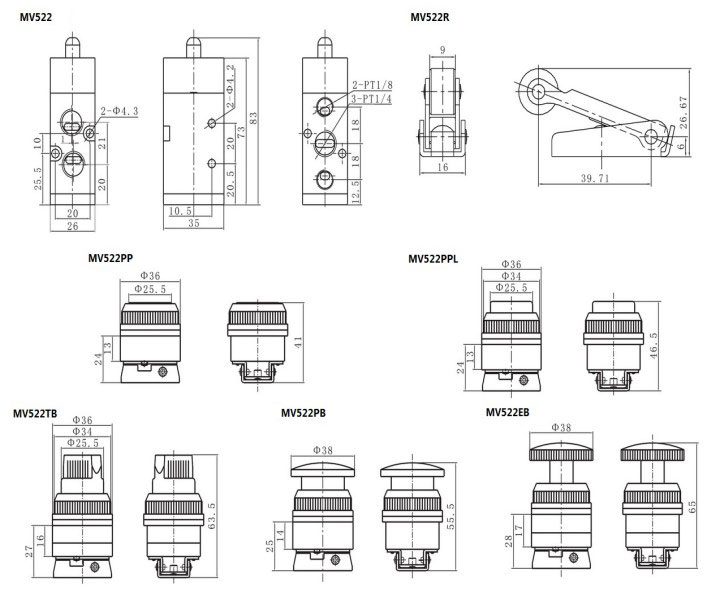

Dimension

Feature

MV-10 MV-10A is identical in size, actuating style, and mounting characteristics to most industrial type electric limit switches
MV-08 could be used in place of electric limits to save on hookup cost and to eliminate spark hazard
Simplify circuits by eliminating the need for wire shielding, transformers and solenoids
Type:Roller type pneumatic valve MV-09 (MV522R),MV522 Basic type air operated valve,MV522PP Flat head push button valve, MV-10(MV522TB) Locking hand control valve,MV-08(MV522TB) Rotary type mechanical operated valve
