JMJ Series Mechanical Valves
JMJ series 5 port 2 way direct action Pneumatic Mechanical valves JMJ-01 JMJ-02 JMJ-03

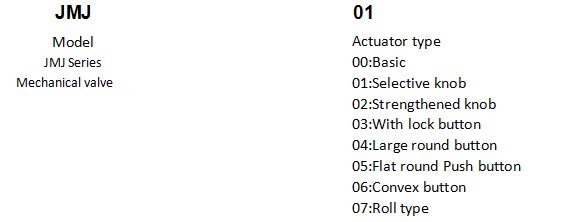

Order code

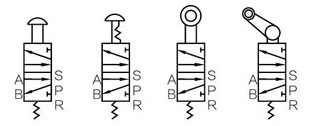

Symbol
Technical parameter
|
Item No. |
JMJ-00 |
JMJ-07 |
JMJ-05 |
JMJ-06 |
JMJ-04 |
JMJ-03 |
JMJ-01 |
JMJ-02 |
|
Fluid |
Air |
|||||||
|
Operating press range |
0-0.8 Mpa |
|||||||
|
Ambient and fluid temperature |
-5 to 60℃ |
|||||||
|
Port size |
1/4” |
|||||||
|
Operation type |
Direct acting |
|||||||
|
Lubrication |
Not required |
|||||||
Feature
JMJ series mechanical valve is direct acting, working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function,Lubricant is not necessary.
